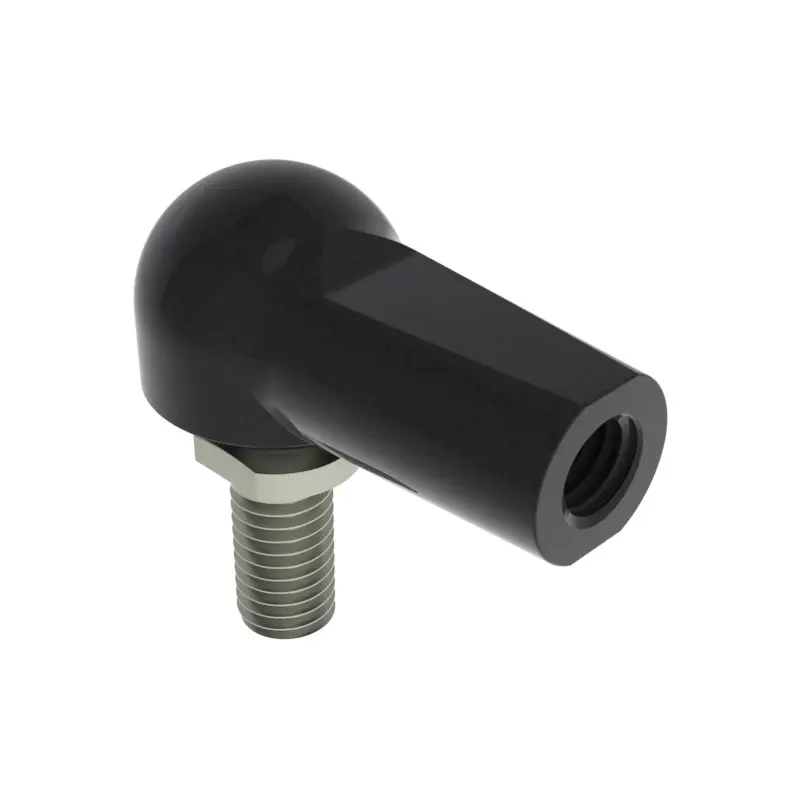

Angle joints DIN 71802 form B with thread pin without safety fastening, with plastic ball cups(ball socket)
Constructions
Operation range
| Right-hand | Female thread direction |
| d1 h9 | 10 mm | Ball diameter |
| d2 | M6 x 1.00 | Thread |
| d3 | 10 mm | Shank diameter |
| d4 | 16 mm | Socket head diameter |
| l3 ±0.3 | 11 mm | Center to stud shoulder |
| a ±0.3 | 25 mm | Center to shank end |
| e min. | 16 mm | Female thread length |
| SW | 8 mm | Width across flats |
| SW1 | 9 mm | Width across flats |
| ≈m | 12.22 g | Weight |
