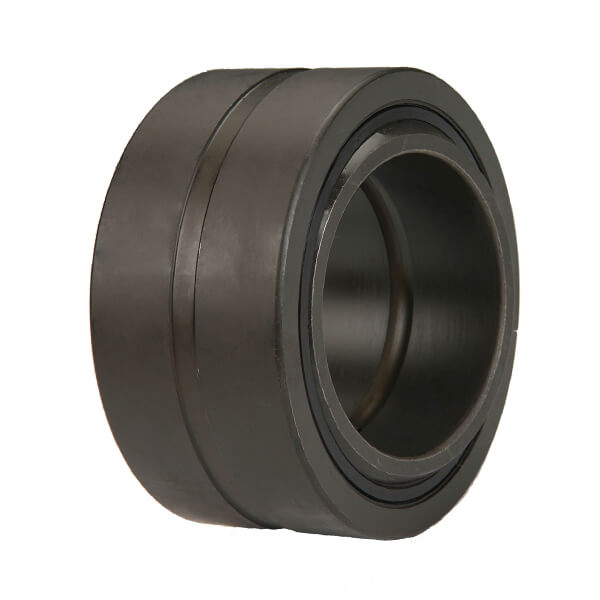

Inch series high misalignment steel on steel radial spherical plain bearings
| Requiring maintenance | Maintenance | |
| Steel/Steel | Sliding contact surface | |
| Lip seals | Sealing | |
| Bearing steel | Material, inner ring | |
| Bearing steel | Material, outer ring |
| d | 44.45 mm | Bore diameter |
| D | 80.963 mm | Outside diameter |
| B | 46.228 mm | Width inner ring |
| C | 38.1 mm | Width outer ring |
| dk | 73 mm | Ball diameter |
| a | 7 ° | Tilt angle |
| d2 | 56.388 mm | Connection measure Inner ring |
| r1 | 0.6 mm | Chamfer dimension |
| r2 | 1 mm | Chamfer dimension |
| Cr | 224 kN | Basic dynamic load rating, radial |
| C0r | 670 kN | Basic static load rating, radial |
| ≈m | 1.14 kg | Weight |
| da max | 50.9 mm | Connection measure inner ring, max. |
| Da min | 72.4 mm | Housing connection diameter, min. |
| Da max | 75.9 mm | Housing Shoulder diameter, max. |
| ra min | 0.6 mm | Fillet radius shaft, min |
| rb max | 1 mm | Fillet radius housing, max. |
| Min. | 0.0762 mm | Radial clearance |
| Max. | 0.1778 mm | Radial clearance |
| dUT | -0.0127 mm | Bore diameter,lower tolerance |
| DUT | -0.0152 mm | Outside diameter,lower tolerance |
| BUT | -0.127 mm | Inner ring width,lower tolerance |
| CUT | -0.127 mm | Outer ring width, lower tolerance |
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 130 °C | Operating temperature max. |
| SKF | RBC | AURORA | TORRINGTON | LS |
| GEZH112ES-2RS | BH2832-LSS | GEGZ028ES-2RS | 17SFH32-TT | GEGZ44ES-2RS |
