DIN71803 ball stud

C&H manufacture DIN 71803 standard ball stud with high quality and fast delivery.

Types of ball studs

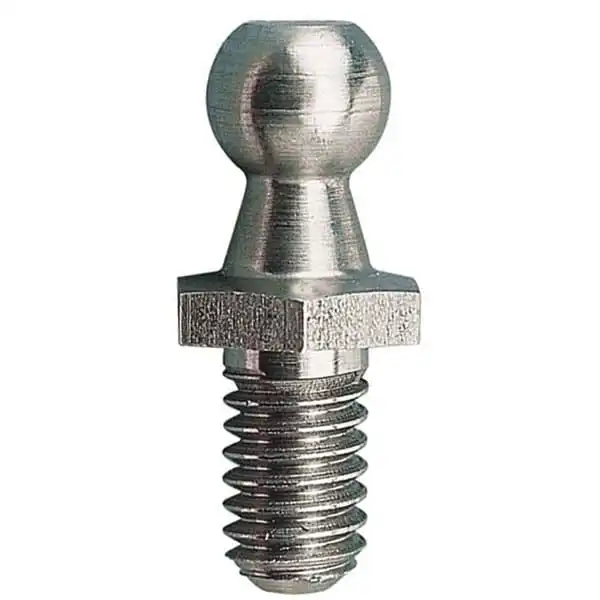

  • Ball stud DIN 71803 form C/CS with thread stud(pin)

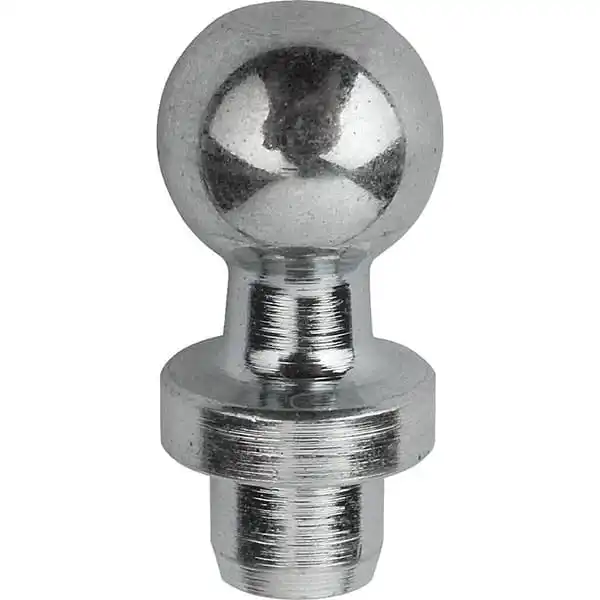

  • Ball stud DIN 71803 form B/BS with rivet stud(pin)
  • Custom-made ball studs

Material

  • 1045 carbon steel, unhardened or hardened
  • 304/316/316L stainless steel

Operating range

  • -40°C ~ +120°C(-40°F ~ +248°F)

PRODUCT FILTERS AND TABLE

For DIN71802 angle joint size
6
8
10
13
16
19
Stud Material
Carbon steel
Stainless steel
Stud type
Rivet
Threaded
Form
B
C
Stud thread
M4 x 0.70
M5 x 0.80
M6 x 1.00
M8 x 1.25
M10 x 1.50
M12 x 1.75
M14 x 1.50
M14 x 2.00
M16 x 1.50
M16 x 2.00
Stud diameter
4
5
6
8
10
14
Designation

Interchange code

RESET ALL
FILTERS
Toggle ： Metric Imperial   Sort By :
Designation For DIN71802 angle joint size Stud type Stud thread Stud diameter Stud length Rivet pin length Center to stud shoulder Weight
d1 h9 d2 d5 h11 l2 ±0.3 l1 ±0.3 l3 ±0.3 ≈m
mm
mm
mm
g
DIN71803-C6 M4 6 Threaded M4 x 0.70 8 8.5 2.1
DIN71803-C8 M5 8 Threaded M5 x 0.80 10.2 9 4.55
DIN71803-C10 M6 10 Threaded M6 x 1.00 12.5 11 8.5
DIN71803-C13 M8 13 Threaded M8 x 1.25 16.5 13 17.7
DIN71803-C16 M10 16 Threaded M10 x 1.50 20 16 35.1
DIN71803-C16 M12 16 Threaded M12 x 1.75 20 16 35.1
DIN71803-C19 M14 19 Threaded M14 x 2.00 28 20 71.2
DIN71803-C19 M14F 19 Threaded M14 x 1.50 28 20 71.2
DIN71803-C19 M16 19 Threaded M16 x 2.00 28 20 71.2
DIN71803-C6 M4 SS 6 Threaded M4 x 0.70 8 8.5 2.1
DIN71803-C8 M5 SS 8 Threaded M5 x 0.80 10.2 9 4.55
DIN71803-C10 M6 SS 10 Threaded M6 x 1.00 12.5 11 8.5
DIN71803-C13 M8 SS 13 Threaded M8 x 1.25 16.5 13 17.7
DIN71803-C16 M10 SS 16 Threaded M10 x 1.50 20 16 35.1
DIN71803-C16 M12 SS 16 Threaded M12 x 1.75 20 16 35.1
DIN71803-C19 M14 SS 19 Threaded M14 x 2.00 28 20 71.2
DIN71803-C19 M14F SS 19 Threaded M14 x 1.50 28 20 71.2
DIN71803-C19 M16 SS 19 Threaded M16 x 2.00 28 20 71.2
DIN71803-B6 x 3.5 6 Rivet 4 3.5 8.5 1.9
DIN71803-B8 x 4 8 Rivet 5 4 9 3.85
DIN71803-B8 x 7.5 8 Rivet 5 7.5 9 4.35
DIN71803-B10 x 4.5 10 Rivet 6 4.5 11 7.1
DIN71803-B10 x 8 10 Rivet 6 8 11 7.8
DIN71803-B13 x 5 13 Rivet 8 5 13 14.2
DIN71803-B13 x 10 13 Rivet 8 10 13 16
DIN71803-B16 x 6 16 Rivet 10 6 16 23.5
DIN71803-B16 x 13 16 Rivet 10 13 16 29.6
DIN71803-B19 x 12 19 Rivet 14 12 20 56.2
DIN71803-B19 x 18 19 Rivet 14 18 20 63.7
DIN71803-C6 M4
d1 h9 For DIN71802 angle joint size 6
Stud type Threaded
d2 Stud thread M4 x 0.70
d5 h11 Stud diameter
l2 ±0.3 Stud length 8 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 8.5 mm
≈m Weight 2.1 g
DIN71803-C8 M5
d1 h9 For DIN71802 angle joint size 8
Stud type Threaded
d2 Stud thread M5 x 0.80
d5 h11 Stud diameter
l2 ±0.3 Stud length 10.2 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 9 mm
≈m Weight 4.55 g
DIN71803-C10 M6
d1 h9 For DIN71802 angle joint size 10
Stud type Threaded
d2 Stud thread M6 x 1.00
d5 h11 Stud diameter
l2 ±0.3 Stud length 12.5 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 11 mm
≈m Weight 8.5 g
DIN71803-C13 M8
d1 h9 For DIN71802 angle joint size 13
Stud type Threaded
d2 Stud thread M8 x 1.25
d5 h11 Stud diameter
l2 ±0.3 Stud length 16.5 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 13 mm
≈m Weight 17.7 g
DIN71803-C16 M10
d1 h9 For DIN71802 angle joint size 16
Stud type Threaded
d2 Stud thread M10 x 1.50
d5 h11 Stud diameter
l2 ±0.3 Stud length 20 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 16 mm
≈m Weight 35.1 g
DIN71803-C16 M12
d1 h9 For DIN71802 angle joint size 16
Stud type Threaded
d2 Stud thread M12 x 1.75
d5 h11 Stud diameter
l2 ±0.3 Stud length 20 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 16 mm
≈m Weight 35.1 g
DIN71803-C19 M14
d1 h9 For DIN71802 angle joint size 19
Stud type Threaded
d2 Stud thread M14 x 2.00
d5 h11 Stud diameter
l2 ±0.3 Stud length 28 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 20 mm
≈m Weight 71.2 g
DIN71803-C19 M14F
d1 h9 For DIN71802 angle joint size 19
Stud type Threaded
d2 Stud thread M14 x 1.50
d5 h11 Stud diameter
l2 ±0.3 Stud length 28 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 20 mm
≈m Weight 71.2 g
DIN71803-C19 M16
d1 h9 For DIN71802 angle joint size 19
Stud type Threaded
d2 Stud thread M16 x 2.00
d5 h11 Stud diameter
l2 ±0.3 Stud length 28 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 20 mm
≈m Weight 71.2 g
DIN71803-C6 M4 SS
d1 h9 For DIN71802 angle joint size 6
Stud type Threaded
d2 Stud thread M4 x 0.70
d5 h11 Stud diameter
l2 ±0.3 Stud length 8 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 8.5 mm
≈m Weight 2.1 g
DIN71803-C8 M5 SS
d1 h9 For DIN71802 angle joint size 8
Stud type Threaded
d2 Stud thread M5 x 0.80
d5 h11 Stud diameter
l2 ±0.3 Stud length 10.2 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 9 mm
≈m Weight 4.55 g
DIN71803-C10 M6 SS
d1 h9 For DIN71802 angle joint size 10
Stud type Threaded
d2 Stud thread M6 x 1.00
d5 h11 Stud diameter
l2 ±0.3 Stud length 12.5 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 11 mm
≈m Weight 8.5 g
DIN71803-C13 M8 SS
d1 h9 For DIN71802 angle joint size 13
Stud type Threaded
d2 Stud thread M8 x 1.25
d5 h11 Stud diameter
l2 ±0.3 Stud length 16.5 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 13 mm
≈m Weight 17.7 g
DIN71803-C16 M10 SS
d1 h9 For DIN71802 angle joint size 16
Stud type Threaded
d2 Stud thread M10 x 1.50
d5 h11 Stud diameter
l2 ±0.3 Stud length 20 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 16 mm
≈m Weight 35.1 g
DIN71803-C16 M12 SS
d1 h9 For DIN71802 angle joint size 16
Stud type Threaded
d2 Stud thread M12 x 1.75
d5 h11 Stud diameter
l2 ±0.3 Stud length 20 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 16 mm
≈m Weight 35.1 g
DIN71803-C19 M14 SS
d1 h9 For DIN71802 angle joint size 19
Stud type Threaded
d2 Stud thread M14 x 2.00
d5 h11 Stud diameter
l2 ±0.3 Stud length 28 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 20 mm
≈m Weight 71.2 g
DIN71803-C19 M14F SS
d1 h9 For DIN71802 angle joint size 19
Stud type Threaded
d2 Stud thread M14 x 1.50
d5 h11 Stud diameter
l2 ±0.3 Stud length 28 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 20 mm
≈m Weight 71.2 g
DIN71803-C19 M16 SS
d1 h9 For DIN71802 angle joint size 19
Stud type Threaded
d2 Stud thread M16 x 2.00
d5 h11 Stud diameter
l2 ±0.3 Stud length 28 mm
l1 ±0.3 Rivet pin length
l3 ±0.3 Center to stud shoulder 20 mm
≈m Weight 71.2 g
DIN71803-B6 x 3.5
d1 h9 For DIN71802 angle joint size 6
Stud type Rivet
d2 Stud thread
d5 h11 Stud diameter 4
l2 ±0.3 Stud length
l1 ±0.3 Rivet pin length 3.5 mm
l3 ±0.3 Center to stud shoulder 8.5 mm
≈m Weight 1.9 g
DIN71803-B8 x 4
d1 h9 For DIN71802 angle joint size 8
Stud type Rivet
d2 Stud thread
d5 h11 Stud diameter 5
l2 ±0.3 Stud length
l1 ±0.3 Rivet pin length 4 mm
l3 ±0.3 Center to stud shoulder 9 mm
≈m Weight 3.85 g
DIN71803-B8 x 7.5
d1 h9 For DIN71802 angle joint size 8
Stud type Rivet
d2 Stud thread
d5 h11 Stud diameter 5
l2 ±0.3 Stud length
l1 ±0.3 Rivet pin length 7.5 mm
l3 ±0.3 Center to stud shoulder 9 mm
≈m Weight 4.35 g
DIN71803-B10 x 4.5
d1 h9 For DIN71802 angle joint size 10
Stud type Rivet
d2 Stud thread
d5 h11 Stud diameter 6
l2 ±0.3 Stud length
l1 ±0.3 Rivet pin length 4.5 mm
l3 ±0.3 Center to stud shoulder 11 mm
≈m Weight 7.1 g
DIN71803-B10 x 8
d1 h9 For DIN71802 angle joint size 10
Stud type Rivet
d2 Stud thread
d5 h11 Stud diameter 6
l2 ±0.3 Stud length
l1 ±0.3 Rivet pin length 8 mm
l3 ±0.3 Center to stud shoulder 11 mm
≈m Weight 7.8 g
DIN71803-B13 x 5
d1 h9 For DIN71802 angle joint size 13
Stud type Rivet
d2 Stud thread
d5 h11 Stud diameter 8
l2 ±0.3 Stud length
l1 ±0.3 Rivet pin length 5 mm
l3 ±0.3 Center to stud shoulder 13 mm
≈m Weight 14.2 g
DIN71803-B13 x 10
d1 h9 For DIN71802 angle joint size 13
Stud type Rivet
d2 Stud thread
d5 h11 Stud diameter 8
l2 ±0.3 Stud length
l1 ±0.3 Rivet pin length 10 mm
l3 ±0.3 Center to stud shoulder 13 mm
≈m Weight 16 g
DIN71803-B16 x 6
d1 h9 For DIN71802 angle joint size 16
Stud type Rivet
d2 Stud thread
d5 h11 Stud diameter 10
l2 ±0.3 Stud length
l1 ±0.3 Rivet pin length 6 mm
l3 ±0.3 Center to stud shoulder 16 mm
≈m Weight 23.5 g
DIN71803-B16 x 13
d1 h9 For DIN71802 angle joint size 16
Stud type Rivet
d2 Stud thread
d5 h11 Stud diameter 10
l2 ±0.3 Stud length
l1 ±0.3 Rivet pin length 13 mm
l3 ±0.3 Center to stud shoulder 16 mm
≈m Weight 29.6 g
DIN71803-B19 x 12
d1 h9 For DIN71802 angle joint size 19
Stud type Rivet
d2 Stud thread
d5 h11 Stud diameter 14
l2 ±0.3 Stud length
l1 ±0.3 Rivet pin length 12 mm
l3 ±0.3 Center to stud shoulder 20 mm
≈m Weight 56.2 g
DIN71803-B19 x 18
d1 h9 For DIN71802 angle joint size 19
Stud type Rivet
d2 Stud thread
d5 h11 Stud diameter 14
l2 ±0.3 Stud length
l1 ±0.3 Rivet pin length 18 mm
l3 ±0.3 Center to stud shoulder 20 mm
≈m Weight 63.7 g
For DIN71802 angle joint size
d1 h9
6
Stud type
Threaded
Stud thread
d2
M4 x 0.70
Stud diameter
d5 h11
Stud length
l2 ±0.3
8 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
8.5 mm
Weight
≈m
2.1 g
For DIN71802 angle joint size
d1 h9
8
Stud type
Threaded
Stud thread
d2
M5 x 0.80
Stud diameter
d5 h11
Stud length
l2 ±0.3
10.2 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
9 mm
Weight
≈m
4.55 g
For DIN71802 angle joint size
d1 h9
10
Stud type
Threaded
Stud thread
d2
M6 x 1.00
Stud diameter
d5 h11
Stud length
l2 ±0.3
12.5 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
11 mm
Weight
≈m
8.5 g
For DIN71802 angle joint size
d1 h9
13
Stud type
Threaded
Stud thread
d2
M8 x 1.25
Stud diameter
d5 h11
Stud length
l2 ±0.3
16.5 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
13 mm
Weight
≈m
17.7 g
For DIN71802 angle joint size
d1 h9
16
Stud type
Threaded
Stud thread
d2
M10 x 1.50
Stud diameter
d5 h11
Stud length
l2 ±0.3
20 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
16 mm
Weight
≈m
35.1 g
For DIN71802 angle joint size
d1 h9
16
Stud type
Threaded
Stud thread
d2
M12 x 1.75
Stud diameter
d5 h11
Stud length
l2 ±0.3
20 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
16 mm
Weight
≈m
35.1 g
For DIN71802 angle joint size
d1 h9
19
Stud type
Threaded
Stud thread
d2
M14 x 2.00
Stud diameter
d5 h11
Stud length
l2 ±0.3
28 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
20 mm
Weight
≈m
71.2 g
For DIN71802 angle joint size
d1 h9
19
Stud type
Threaded
Stud thread
d2
M14 x 1.50
Stud diameter
d5 h11
Stud length
l2 ±0.3
28 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
20 mm
Weight
≈m
71.2 g
For DIN71802 angle joint size
d1 h9
19
Stud type
Threaded
Stud thread
d2
M16 x 2.00
Stud diameter
d5 h11
Stud length
l2 ±0.3
28 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
20 mm
Weight
≈m
71.2 g
For DIN71802 angle joint size
d1 h9
6
Stud type
Threaded
Stud thread
d2
M4 x 0.70
Stud diameter
d5 h11
Stud length
l2 ±0.3
8 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
8.5 mm
Weight
≈m
2.1 g
For DIN71802 angle joint size
d1 h9
8
Stud type
Threaded
Stud thread
d2
M5 x 0.80
Stud diameter
d5 h11
Stud length
l2 ±0.3
10.2 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
9 mm
Weight
≈m
4.55 g
For DIN71802 angle joint size
d1 h9
10
Stud type
Threaded
Stud thread
d2
M6 x 1.00
Stud diameter
d5 h11
Stud length
l2 ±0.3
12.5 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
11 mm
Weight
≈m
8.5 g
For DIN71802 angle joint size
d1 h9
13
Stud type
Threaded
Stud thread
d2
M8 x 1.25
Stud diameter
d5 h11
Stud length
l2 ±0.3
16.5 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
13 mm
Weight
≈m
17.7 g
For DIN71802 angle joint size
d1 h9
16
Stud type
Threaded
Stud thread
d2
M10 x 1.50
Stud diameter
d5 h11
Stud length
l2 ±0.3
20 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
16 mm
Weight
≈m
35.1 g
For DIN71802 angle joint size
d1 h9
16
Stud type
Threaded
Stud thread
d2
M12 x 1.75
Stud diameter
d5 h11
Stud length
l2 ±0.3
20 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
16 mm
Weight
≈m
35.1 g
For DIN71802 angle joint size
d1 h9
19
Stud type
Threaded
Stud thread
d2
M14 x 2.00
Stud diameter
d5 h11
Stud length
l2 ±0.3
28 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
20 mm
Weight
≈m
71.2 g
For DIN71802 angle joint size
d1 h9
19
Stud type
Threaded
Stud thread
d2
M14 x 1.50
Stud diameter
d5 h11
Stud length
l2 ±0.3
28 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
20 mm
Weight
≈m
71.2 g
For DIN71802 angle joint size
d1 h9
19
Stud type
Threaded
Stud thread
d2
M16 x 2.00
Stud diameter
d5 h11
Stud length
l2 ±0.3
28 mm
Rivet pin length
l1 ±0.3
Center to stud shoulder
l3 ±0.3
20 mm
Weight
≈m
71.2 g
For DIN71802 angle joint size
d1 h9
6
Stud type
Rivet
Stud thread
d2
Stud diameter
d5 h11
4
Stud length
l2 ±0.3
Rivet pin length
l1 ±0.3
3.5 mm
Center to stud shoulder
l3 ±0.3
8.5 mm
Weight
≈m
1.9 g
For DIN71802 angle joint size
d1 h9
8
Stud type
Rivet
Stud thread
d2
Stud diameter
d5 h11
5
Stud length
l2 ±0.3
Rivet pin length
l1 ±0.3
4 mm
Center to stud shoulder
l3 ±0.3
9 mm
Weight
≈m
3.85 g
For DIN71802 angle joint size
d1 h9
8
Stud type
Rivet
Stud thread
d2
Stud diameter
d5 h11
5
Stud length
l2 ±0.3
Rivet pin length
l1 ±0.3
7.5 mm
Center to stud shoulder
l3 ±0.3
9 mm
Weight
≈m
4.35 g
For DIN71802 angle joint size
d1 h9
10
Stud type
Rivet
Stud thread
d2
Stud diameter
d5 h11
6
Stud length
l2 ±0.3
Rivet pin length
l1 ±0.3
4.5 mm
Center to stud shoulder
l3 ±0.3
11 mm
Weight
≈m
7.1 g
For DIN71802 angle joint size
d1 h9
10
Stud type
Rivet
Stud thread
d2
Stud diameter
d5 h11
6
Stud length
l2 ±0.3
Rivet pin length
l1 ±0.3
8 mm
Center to stud shoulder
l3 ±0.3
11 mm
Weight
≈m
7.8 g
For DIN71802 angle joint size
d1 h9
13
Stud type
Rivet
Stud thread
d2
Stud diameter
d5 h11
8
Stud length
l2 ±0.3
Rivet pin length
l1 ±0.3
5 mm
Center to stud shoulder
l3 ±0.3
13 mm
Weight
≈m
14.2 g
For DIN71802 angle joint size
d1 h9
13
Stud type
Rivet
Stud thread
d2
Stud diameter
d5 h11
8
Stud length
l2 ±0.3
Rivet pin length
l1 ±0.3
10 mm
Center to stud shoulder
l3 ±0.3
13 mm
Weight
≈m
16 g
For DIN71802 angle joint size
d1 h9
16
Stud type
Rivet
Stud thread
d2
Stud diameter
d5 h11
10
Stud length
l2 ±0.3
Rivet pin length
l1 ±0.3
6 mm
Center to stud shoulder
l3 ±0.3
16 mm
Weight
≈m
23.5 g
For DIN71802 angle joint size
d1 h9
16
Stud type
Rivet
Stud thread
d2
Stud diameter
d5 h11
10
Stud length
l2 ±0.3
Rivet pin length
l1 ±0.3
13 mm
Center to stud shoulder
l3 ±0.3
16 mm
Weight
≈m
29.6 g
For DIN71802 angle joint size
d1 h9
19
Stud type
Rivet
Stud thread
d2
Stud diameter
d5 h11
14
Stud length
l2 ±0.3
Rivet pin length
l1 ±0.3
12 mm
Center to stud shoulder
l3 ±0.3
20 mm
Weight
≈m
56.2 g
For DIN71802 angle joint size
d1 h9
19
Stud type
Rivet
Stud thread
d2
Stud diameter
d5 h11
14
Stud length
l2 ±0.3
Rivet pin length
l1 ±0.3
18 mm
Center to stud shoulder
l3 ±0.3
20 mm
Weight
≈m
63.7 g
Designation

Threaded Ball Stud

For example:DIN71803 – C 19 M14 F SS LH

1. Standard: DIN71803

2. Form: A – suffix ” A “; B – suffix ” B “; C – suffix ” C “

3. DIN71802 angle joint size:  from 6 to 19

4. Thread size: from M4 to M16

5 Screw type: regular- No suffix; fine-pitch- suffix ” F “

6. Thread direction: Right-hand – no suffix; Left-hand – suffix ” LH “

7. Material: Carbon steel – no suffix; Stainless steel – suffix ” SS “

8. Spanner/Wrench:  Spanner surface – no suffix; Hex – suffix ” H “



Rivet Pin Ball Stud

For example: DIN71803 – B6 x 3.5 SS

1. Standard: DIN71803

2. Form: B – suffix ” B “

3. DIN71802 angle joint size:  from 6 to 19

4. Rivet pin length:  from 3.5 to 18

5. Material: Carbon steel – no suffix; Stainless steel – suffix “SS “

Tensile Strength of Carbon Steel Ball Studs

Standard delivery ball studs are un heat-treated

However, if a higher tensile strength is required, the ball studs can be heat treated, with a minimum hardness of 52HRC or 550 HV 30, depth of hardening at least 1 mm (no full hardening permitted when dk > 13 mm) and a minimum tensile strength of Rm 600 N/mm². The heat-treated ball studs provides durable and long-lasting performance.

111

ISO CERTIFICATE
ABOUT US
CONTACT US
SOCIAL MEDIAS
MOBILE APPS
©Copyright 2022 C&H Bearing, All Rights Reserved Terms of use Privacy Policy SITEMAP
C&H BEARING WEBSITE
×
