DIN71805 ball socket

C&H manufacturer ball socket DIN71805 with a widely variety configurations.

Types

  • Ball sockets DIN 71805 form A without snap ring and groove
  • Ball sockets DIN 71805 form B with snap ring and groove
  • Ball sockets similar to DIN 71805 form B with spanner surface

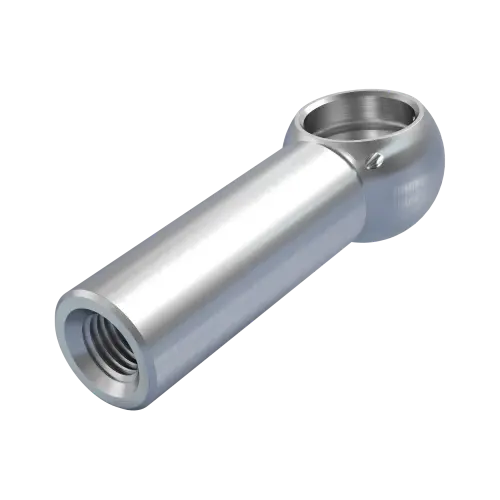

  • Ball sockets similar to DIN 71805 form B long version
  • Ball sockets with slit and clip
  • Ball sockets made of plastic similar to DIN 71805 with clamping bracket
  • Ball sockets made of plastic similar to DIN 71805
  • Ball sockets hardened according to drawing
  • Custom-made ball sockets

Material

  • Carbon steel
  • Stainless steel 304/316/316L
  • POM/PA66 plastic

Shank configuration

  • With spanner surface
  • With hex shaped barrel
  • Precision screw thread grade: 6H

Temperature range

  • Steel: -40°C ~ +120°C(-40°F ~ +248°F)
  • POM: -40°C ~ +80°C(-40°F ~ +176°F)
  • PA66: -40°C ~ +90°C(-40°F ~ +194°F)

PRODUCT FILTERS AND TABLE

For angle ball joints DIN 71802 size
6
8
10
13
16
19
Body material
Carbon steel
POM
PA66
Stainless steel
shank configuration
W/O wrench flat
With wrench flat
With hex wrench flat
Long shank W/O wrench flat
Long shank W/O wrench flat
Female thread direction
Right-hand
Left-hand
Body thread
M4 x 0.70
M5 x 0.80
M6 x 1.00
M8 x 1.25
M10 x 1.50
M12 x 1.75
M14 x 1.50
M14 x 2.00
M16 x 1.50
M16 x 2.00
Designation

Interchange code

RESET ALL
FILTERS
Toggle ： Metric Imperial   Sort By :
Designation For angle ball joints DIN 71802 size Female thread direction Body thread Shank diameter Socket head diameter Housing thread length Center to shank end
d1 H9 d2 6H d3 ±0.5 d4 ±0.5 e min. a ±0.3
mm
mm
mm
mm
DIN71805-B19 M14 SS 19 Right-hand M14 x 2.00 22 30 21.5 45
DIN71805-B19 M14 SS LH 19 Left-hand M14 x 2.00 22 30 21.5 45
DIN71805-B19 M14F SS 19 Right-hand M14 x 1.50 22 30 21.5 45
DIN71805-B19 M14F SS LH 19 Left-hand M14 x 1.50 22 30 21.5 45
DIN71805-B19 M16 SS 19 Right-hand M16 x 2.00 22 30 21.5 45
DIN71805-B19 M16 SS LH 19 Left-hand M16 x 2.00 22 30 21.5 45
DIN71805-A6 M4 POM 6 Right-hand M4 x 0.70 9 10 11 17
DIN71805-A8 M5 POM 8 Right-hand M5 x 0.80 9.5 14 14 22
DIN71805-A10 M6 POM 10 Right-hand M6 x 1.00 10.5 16 16 25
DIN71805-A13 M8 POM 13 Right-hand M8 x 1.25 13 20 19 30
DIN71805-B6 M4 PA66 6 Right-hand M4 x 0.70 8 10 10 17
DIN71805-B8 M5 PA66 8 Right-hand M5 x 0.80 9.5 12.5 12 22
DIN71805-B10 M6 PA66 10 Right-hand M6 x 1.00 12 15 14 25
DIN71805-B13 M8 PA66 13 Right-hand M8 x 1.25 15 19 17 30
DIN71805-B8 M5 x 35 8 Right-hand M5 x 0.80 8 12.8 19.5 35
DIN71805-B10 M6 x 37 10 Right-hand M6 x 1.00 10 14.8 25 37
DIN71805-B10 M6 x 40 10 Right-hand M6 x 1.00 10 14.8 27 40
DIN71805-B13 M8 x 45 13 Right-hand M8 x 1.25 13 19.3 29 45
DIN71805-B16 M10 x 45 16 Right-hand M10 x 1.50 16 24 25.5 45
DIN71805-B16 M10 x 52 16 Right-hand M10 x 1.50 16 24 30.5 52
DIN71805-B16 M12 x 45 16 Right-hand M12 x 1.75 16 24 25.5 45
DIN71805-B16 M12 x 52 16 Right-hand M12 x 1.75 16 24 30.5 52
DIN71805-B19 M14 x 70 19 Right-hand M14 x 2.00 22 30 44 70
DIN71805-B19 M14F x 70 19 Right-hand M14 x 1.50 22 30 44 70
DIN71805-B19 M16 x 70 19 Right-hand M16 x 2.00 22 30 44 70
DIN71805-B19 M14 SS
d1 H9 For angle ball joints DIN 71802 size 19
Female thread direction Right-hand
d2 6H Body thread M14 x 2.00
d3 ±0.5 Shank diameter 22 mm
d4 ±0.5 Socket head diameter 30 mm
e min. Housing thread length 21.5 mm
a ±0.3 Center to shank end 45 mm
DIN71805-B19 M14 SS LH
d1 H9 For angle ball joints DIN 71802 size 19
Female thread direction Left-hand
d2 6H Body thread M14 x 2.00
d3 ±0.5 Shank diameter 22 mm
d4 ±0.5 Socket head diameter 30 mm
e min. Housing thread length 21.5 mm
a ±0.3 Center to shank end 45 mm
DIN71805-B19 M14F SS
d1 H9 For angle ball joints DIN 71802 size 19
Female thread direction Right-hand
d2 6H Body thread M14 x 1.50
d3 ±0.5 Shank diameter 22 mm
d4 ±0.5 Socket head diameter 30 mm
e min. Housing thread length 21.5 mm
a ±0.3 Center to shank end 45 mm
DIN71805-B19 M14F SS LH
d1 H9 For angle ball joints DIN 71802 size 19
Female thread direction Left-hand
d2 6H Body thread M14 x 1.50
d3 ±0.5 Shank diameter 22 mm
d4 ±0.5 Socket head diameter 30 mm
e min. Housing thread length 21.5 mm
a ±0.3 Center to shank end 45 mm
DIN71805-B19 M16 SS
d1 H9 For angle ball joints DIN 71802 size 19
Female thread direction Right-hand
d2 6H Body thread M16 x 2.00
d3 ±0.5 Shank diameter 22 mm
d4 ±0.5 Socket head diameter 30 mm
e min. Housing thread length 21.5 mm
a ±0.3 Center to shank end 45 mm
DIN71805-B19 M16 SS LH
d1 H9 For angle ball joints DIN 71802 size 19
Female thread direction Left-hand
d2 6H Body thread M16 x 2.00
d3 ±0.5 Shank diameter 22 mm
d4 ±0.5 Socket head diameter 30 mm
e min. Housing thread length 21.5 mm
a ±0.3 Center to shank end 45 mm
DIN71805-A6 M4 POM
d1 H9 For angle ball joints DIN 71802 size 6
Female thread direction Right-hand
d2 6H Body thread M4 x 0.70
d3 ±0.5 Shank diameter 9 mm
d4 ±0.5 Socket head diameter 10 mm
e min. Housing thread length 11 mm
a ±0.3 Center to shank end 17 mm
DIN71805-A8 M5 POM
d1 H9 For angle ball joints DIN 71802 size 8
Female thread direction Right-hand
d2 6H Body thread M5 x 0.80
d3 ±0.5 Shank diameter 9.5 mm
d4 ±0.5 Socket head diameter 14 mm
e min. Housing thread length 14 mm
a ±0.3 Center to shank end 22 mm
DIN71805-A10 M6 POM
d1 H9 For angle ball joints DIN 71802 size 10
Female thread direction Right-hand
d2 6H Body thread M6 x 1.00
d3 ±0.5 Shank diameter 10.5 mm
d4 ±0.5 Socket head diameter 16 mm
e min. Housing thread length 16 mm
a ±0.3 Center to shank end 25 mm
DIN71805-A13 M8 POM
d1 H9 For angle ball joints DIN 71802 size 13
Female thread direction Right-hand
d2 6H Body thread M8 x 1.25
d3 ±0.5 Shank diameter 13 mm
d4 ±0.5 Socket head diameter 20 mm
e min. Housing thread length 19 mm
a ±0.3 Center to shank end 30 mm
DIN71805-B6 M4 PA66
d1 H9 For angle ball joints DIN 71802 size 6
Female thread direction Right-hand
d2 6H Body thread M4 x 0.70
d3 ±0.5 Shank diameter 8 mm
d4 ±0.5 Socket head diameter 10 mm
e min. Housing thread length 10 mm
a ±0.3 Center to shank end 17 mm
DIN71805-B8 M5 PA66
d1 H9 For angle ball joints DIN 71802 size 8
Female thread direction Right-hand
d2 6H Body thread M5 x 0.80
d3 ±0.5 Shank diameter 9.5 mm
d4 ±0.5 Socket head diameter 12.5 mm
e min. Housing thread length 12 mm
a ±0.3 Center to shank end 22 mm
DIN71805-B10 M6 PA66
d1 H9 For angle ball joints DIN 71802 size 10
Female thread direction Right-hand
d2 6H Body thread M6 x 1.00
d3 ±0.5 Shank diameter 12 mm
d4 ±0.5 Socket head diameter 15 mm
e min. Housing thread length 14 mm
a ±0.3 Center to shank end 25 mm
DIN71805-B13 M8 PA66
d1 H9 For angle ball joints DIN 71802 size 13
Female thread direction Right-hand
d2 6H Body thread M8 x 1.25
d3 ±0.5 Shank diameter 15 mm
d4 ±0.5 Socket head diameter 19 mm
e min. Housing thread length 17 mm
a ±0.3 Center to shank end 30 mm
DIN71805-B8 M5 x 35
d1 H9 For angle ball joints DIN 71802 size 8
Female thread direction Right-hand
d2 6H Body thread M5 x 0.80
d3 ±0.5 Shank diameter 8 mm
d4 ±0.5 Socket head diameter 12.8 mm
e min. Housing thread length 19.5 mm
a ±0.3 Center to shank end 35 mm
DIN71805-B10 M6 x 37
d1 H9 For angle ball joints DIN 71802 size 10
Female thread direction Right-hand
d2 6H Body thread M6 x 1.00
d3 ±0.5 Shank diameter 10 mm
d4 ±0.5 Socket head diameter 14.8 mm
e min. Housing thread length 25 mm
a ±0.3 Center to shank end 37 mm
DIN71805-B10 M6 x 40
d1 H9 For angle ball joints DIN 71802 size 10
Female thread direction Right-hand
d2 6H Body thread M6 x 1.00
d3 ±0.5 Shank diameter 10 mm
d4 ±0.5 Socket head diameter 14.8 mm
e min. Housing thread length 27 mm
a ±0.3 Center to shank end 40 mm
DIN71805-B13 M8 x 45
d1 H9 For angle ball joints DIN 71802 size 13
Female thread direction Right-hand
d2 6H Body thread M8 x 1.25
d3 ±0.5 Shank diameter 13 mm
d4 ±0.5 Socket head diameter 19.3 mm
e min. Housing thread length 29 mm
a ±0.3 Center to shank end 45 mm
DIN71805-B16 M10 x 45
d1 H9 For angle ball joints DIN 71802 size 16
Female thread direction Right-hand
d2 6H Body thread M10 x 1.50
d3 ±0.5 Shank diameter 16 mm
d4 ±0.5 Socket head diameter 24 mm
e min. Housing thread length 25.5 mm
a ±0.3 Center to shank end 45 mm
DIN71805-B16 M10 x 52
d1 H9 For angle ball joints DIN 71802 size 16
Female thread direction Right-hand
d2 6H Body thread M10 x 1.50
d3 ±0.5 Shank diameter 16 mm
d4 ±0.5 Socket head diameter 24 mm
e min. Housing thread length 30.5 mm
a ±0.3 Center to shank end 52 mm
DIN71805-B16 M12 x 45
d1 H9 For angle ball joints DIN 71802 size 16
Female thread direction Right-hand
d2 6H Body thread M12 x 1.75
d3 ±0.5 Shank diameter 16 mm
d4 ±0.5 Socket head diameter 24 mm
e min. Housing thread length 25.5 mm
a ±0.3 Center to shank end 45 mm
DIN71805-B16 M12 x 52
d1 H9 For angle ball joints DIN 71802 size 16
Female thread direction Right-hand
d2 6H Body thread M12 x 1.75
d3 ±0.5 Shank diameter 16 mm
d4 ±0.5 Socket head diameter 24 mm
e min. Housing thread length 30.5 mm
a ±0.3 Center to shank end 52 mm
DIN71805-B19 M14 x 70
d1 H9 For angle ball joints DIN 71802 size 19
Female thread direction Right-hand
d2 6H Body thread M14 x 2.00
d3 ±0.5 Shank diameter 22 mm
d4 ±0.5 Socket head diameter 30 mm
e min. Housing thread length 44 mm
a ±0.3 Center to shank end 70 mm
DIN71805-B19 M14F x 70
d1 H9 For angle ball joints DIN 71802 size 19
Female thread direction Right-hand
d2 6H Body thread M14 x 1.50
d3 ±0.5 Shank diameter 22 mm
d4 ±0.5 Socket head diameter 30 mm
e min. Housing thread length 44 mm
a ±0.3 Center to shank end 70 mm
DIN71805-B19 M16 x 70
d1 H9 For angle ball joints DIN 71802 size 19
Female thread direction Right-hand
d2 6H Body thread M16 x 2.00
d3 ±0.5 Shank diameter 22 mm
d4 ±0.5 Socket head diameter 30 mm
e min. Housing thread length 44 mm
a ±0.3 Center to shank end 70 mm
For angle ball joints DIN 71802 size
d1 H9
19
Female thread direction
Right-hand
Body thread
d2 6H
M14 x 2.00
Shank diameter
d3 ±0.5
22 mm
Socket head diameter
d4 ±0.5
30 mm
Housing thread length
e min.
21.5 mm
Center to shank end
a ±0.3
45 mm
For angle ball joints DIN 71802 size
d1 H9
19
Female thread direction
Left-hand
Body thread
d2 6H
M14 x 2.00
Shank diameter
d3 ±0.5
22 mm
Socket head diameter
d4 ±0.5
30 mm
Housing thread length
e min.
21.5 mm
Center to shank end
a ±0.3
45 mm
For angle ball joints DIN 71802 size
d1 H9
19
Female thread direction
Right-hand
Body thread
d2 6H
M14 x 1.50
Shank diameter
d3 ±0.5
22 mm
Socket head diameter
d4 ±0.5
30 mm
Housing thread length
e min.
21.5 mm
Center to shank end
a ±0.3
45 mm
For angle ball joints DIN 71802 size
d1 H9
19
Female thread direction
Left-hand
Body thread
d2 6H
M14 x 1.50
Shank diameter
d3 ±0.5
22 mm
Socket head diameter
d4 ±0.5
30 mm
Housing thread length
e min.
21.5 mm
Center to shank end
a ±0.3
45 mm
For angle ball joints DIN 71802 size
d1 H9
19
Female thread direction
Right-hand
Body thread
d2 6H
M16 x 2.00
Shank diameter
d3 ±0.5
22 mm
Socket head diameter
d4 ±0.5
30 mm
Housing thread length
e min.
21.5 mm
Center to shank end
a ±0.3
45 mm
For angle ball joints DIN 71802 size
d1 H9
19
Female thread direction
Left-hand
Body thread
d2 6H
M16 x 2.00
Shank diameter
d3 ±0.5
22 mm
Socket head diameter
d4 ±0.5
30 mm
Housing thread length
e min.
21.5 mm
Center to shank end
a ±0.3
45 mm
For angle ball joints DIN 71802 size
d1 H9
6
Female thread direction
Right-hand
Body thread
d2 6H
M4 x 0.70
Shank diameter
d3 ±0.5
9 mm
Socket head diameter
d4 ±0.5
10 mm
Housing thread length
e min.
11 mm
Center to shank end
a ±0.3
17 mm
For angle ball joints DIN 71802 size
d1 H9
8
Female thread direction
Right-hand
Body thread
d2 6H
M5 x 0.80
Shank diameter
d3 ±0.5
9.5 mm
Socket head diameter
d4 ±0.5
14 mm
Housing thread length
e min.
14 mm
Center to shank end
a ±0.3
22 mm
For angle ball joints DIN 71802 size
d1 H9
10
Female thread direction
Right-hand
Body thread
d2 6H
M6 x 1.00
Shank diameter
d3 ±0.5
10.5 mm
Socket head diameter
d4 ±0.5
16 mm
Housing thread length
e min.
16 mm
Center to shank end
a ±0.3
25 mm
For angle ball joints DIN 71802 size
d1 H9
13
Female thread direction
Right-hand
Body thread
d2 6H
M8 x 1.25
Shank diameter
d3 ±0.5
13 mm
Socket head diameter
d4 ±0.5
20 mm
Housing thread length
e min.
19 mm
Center to shank end
a ±0.3
30 mm
For angle ball joints DIN 71802 size
d1 H9
6
Female thread direction
Right-hand
Body thread
d2 6H
M4 x 0.70
Shank diameter
d3 ±0.5
8 mm
Socket head diameter
d4 ±0.5
10 mm
Housing thread length
e min.
10 mm
Center to shank end
a ±0.3
17 mm
For angle ball joints DIN 71802 size
d1 H9
8
Female thread direction
Right-hand
Body thread
d2 6H
M5 x 0.80
Shank diameter
d3 ±0.5
9.5 mm
Socket head diameter
d4 ±0.5
12.5 mm
Housing thread length
e min.
12 mm
Center to shank end
a ±0.3
22 mm
For angle ball joints DIN 71802 size
d1 H9
10
Female thread direction
Right-hand
Body thread
d2 6H
M6 x 1.00
Shank diameter
d3 ±0.5
12 mm
Socket head diameter
d4 ±0.5
15 mm
Housing thread length
e min.
14 mm
Center to shank end
a ±0.3
25 mm
For angle ball joints DIN 71802 size
d1 H9
13
Female thread direction
Right-hand
Body thread
d2 6H
M8 x 1.25
Shank diameter
d3 ±0.5
15 mm
Socket head diameter
d4 ±0.5
19 mm
Housing thread length
e min.
17 mm
Center to shank end
a ±0.3
30 mm
For angle ball joints DIN 71802 size
d1 H9
8
Female thread direction
Right-hand
Body thread
d2 6H
M5 x 0.80
Shank diameter
d3 ±0.5
8 mm
Socket head diameter
d4 ±0.5
12.8 mm
Housing thread length
e min.
19.5 mm
Center to shank end
a ±0.3
35 mm
For angle ball joints DIN 71802 size
d1 H9
10
Female thread direction
Right-hand
Body thread
d2 6H
M6 x 1.00
Shank diameter
d3 ±0.5
10 mm
Socket head diameter
d4 ±0.5
14.8 mm
Housing thread length
e min.
25 mm
Center to shank end
a ±0.3
37 mm
For angle ball joints DIN 71802 size
d1 H9
10
Female thread direction
Right-hand
Body thread
d2 6H
M6 x 1.00
Shank diameter
d3 ±0.5
10 mm
Socket head diameter
d4 ±0.5
14.8 mm
Housing thread length
e min.
27 mm
Center to shank end
a ±0.3
40 mm
For angle ball joints DIN 71802 size
d1 H9
13
Female thread direction
Right-hand
Body thread
d2 6H
M8 x 1.25
Shank diameter
d3 ±0.5
13 mm
Socket head diameter
d4 ±0.5
19.3 mm
Housing thread length
e min.
29 mm
Center to shank end
a ±0.3
45 mm
For angle ball joints DIN 71802 size
d1 H9
16
Female thread direction
Right-hand
Body thread
d2 6H
M10 x 1.50
Shank diameter
d3 ±0.5
16 mm
Socket head diameter
d4 ±0.5
24 mm
Housing thread length
e min.
25.5 mm
Center to shank end
a ±0.3
45 mm
For angle ball joints DIN 71802 size
d1 H9
16
Female thread direction
Right-hand
Body thread
d2 6H
M10 x 1.50
Shank diameter
d3 ±0.5
16 mm
Socket head diameter
d4 ±0.5
24 mm
Housing thread length
e min.
30.5 mm
Center to shank end
a ±0.3
52 mm
For angle ball joints DIN 71802 size
d1 H9
16
Female thread direction
Right-hand
Body thread
d2 6H
M12 x 1.75
Shank diameter
d3 ±0.5
16 mm
Socket head diameter
d4 ±0.5
24 mm
Housing thread length
e min.
25.5 mm
Center to shank end
a ±0.3
45 mm
For angle ball joints DIN 71802 size
d1 H9
16
Female thread direction
Right-hand
Body thread
d2 6H
M12 x 1.75
Shank diameter
d3 ±0.5
16 mm
Socket head diameter
d4 ±0.5
24 mm
Housing thread length
e min.
30.5 mm
Center to shank end
a ±0.3
52 mm
For angle ball joints DIN 71802 size
d1 H9
19
Female thread direction
Right-hand
Body thread
d2 6H
M14 x 2.00
Shank diameter
d3 ±0.5
22 mm
Socket head diameter
d4 ±0.5
30 mm
Housing thread length
e min.
44 mm
Center to shank end
a ±0.3
70 mm
For angle ball joints DIN 71802 size
d1 H9
19
Female thread direction
Right-hand
Body thread
d2 6H
M14 x 1.50
Shank diameter
d3 ±0.5
22 mm
Socket head diameter
d4 ±0.5
30 mm
Housing thread length
e min.
44 mm
Center to shank end
a ±0.3
70 mm
For angle ball joints DIN 71802 size
d1 H9
19
Female thread direction
Right-hand
Body thread
d2 6H
M16 x 2.00
Shank diameter
d3 ±0.5
22 mm
Socket head diameter
d4 ±0.5
30 mm
Housing thread length
e min.
44 mm
Center to shank end
a ±0.3
70 mm
Designation

DIN71805-

For example: B19 M14 F x 70  SS LH

1. DIN Standard: DIN71805

2. Form ” A ” or ” B “

3. DIN71802 angle joint size:  from 6 to 19

4. Thread size: from M4 to M16

5. Thread type: regular- No suffix; fine-pitch- suffix ” F “

6. Material: Carbon steel – no suffix; Stainless steel – suffix ” SS “;  POM – Plastic – suffix ” POM “;  PA66 – Plastic – suffix ” PA66 “

7. Thread direction: Right-hand – no suffix; Left-hand – suffix ” LH “

8. Long version – suffix ” x length ” and center line length

9. Spanner/Wrench:  Without – no suffix; Spanner surface – suffix ” SW “; Hex barrel – suffix ” SH “



Tensile Strength of Carbon Steel Ball Sockets

Standard ball sockets are delivered without heat treatment.

However, if a higher tensile strength is required, the ball socket can be heat treated, with a minimum hardness of 52HRC and a minimum tensile strength of Rm 500 N/mm². The heat-treated ball socket provides durable and long-lasting performance.

111

ISO CERTIFICATE
ABOUT US
CONTACT US
SOCIAL MEDIAS
MOBILE APPS
©Copyright 2022 C&H Bearing, All Rights Reserved Terms of use Privacy Policy SITEMAP
C&H BEARING WEBSITE
×
