GEWZ12ES

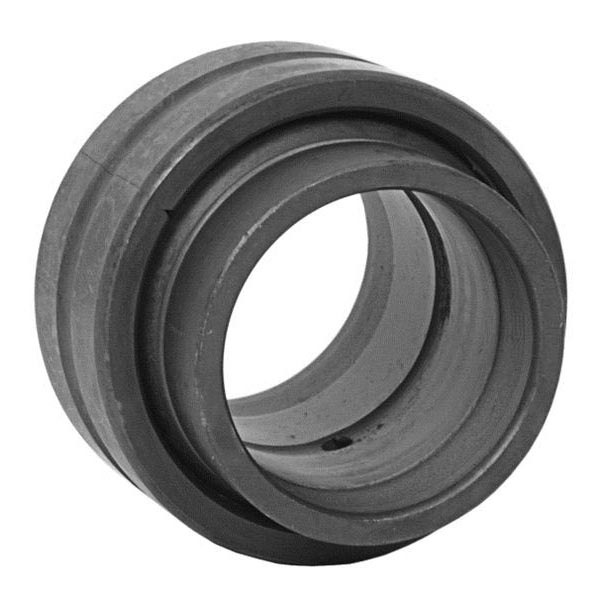

Inch series radial spherical plain bearings with an extended inner ring, requiring maintenance, steel/steel

This spherical plain bearing has an extended inner ring for cylinder connection.
This spherical plain bearing has a single fractured outer ring.
The inner ring and outer ring are coated with molybdenum disulfide for reduced sliding friction.
The bearing can be relubricated via lubrication holes and an annular groove in both rings.
This spherical plain bearing must be properly lubricated with grease.

Цена :

Минимальное количество для заказа :

Время выполнения :

РАССЛЕДОВАНИЕ

Display : Метрика Дюйм

Properties

Dimensions

d	12.7 mm	Bore diameter
D	22.225 mm	Outside diameter
B	19.05 mm	Width inner ring
C	9.525 mm	Width outer ring
d_k	18 mm	Ball diameter
a	9 °	Tilt angle
d₂	15.875 mm	Connection measure Inner ring
r₁	0.15 mm	Chamfer dimension
r₂	0.6 mm	Chamfer dimension

Load Capacity

C_r	13 kN	Basic dynamic load rating, radial
C_0r	41 kN	Basic static load rating, radial

Weight

≈m

0.024 kg

Weight

Mounting dimensions

d_{a min}	14.3 mm	Connection measure inner ring, min.
d_{a max}	15.9 mm	Connection measure inner ring, max.
D_{a min}	17.3 mm	Housing connection diameter, min.
D_{a max}	19.9 mm	Housing Shoulder diameter, max.
r_{a min}	0.15 mm	Fillet radius shaft, min
r_{b max}	0.6 mm	Fillet radius housing, max.

Radial clearance

Min.	0.0508 mm	Radial clearance
Max.	0.1524 mm	Radial clearance

Tolerance

d_UT	-0.0127 mm	Bore diameter,lower tolerance
D_UT	-0.0127 mm	Outside diameter,lower tolerance
B_UT	-0.0127 mm	Inner ring width,lower tolerance
C_UT	-0.0127 mm	Outer ring width, lower tolerance

Temperature range

T_min	-50 °C	Operating temperature min.
T_max	150 °C	Operating temperature max.

SKF	RBC	AURORA	LS
GEZM008ES	B8-EL	GEWZ008ES	GEWZ12ES
