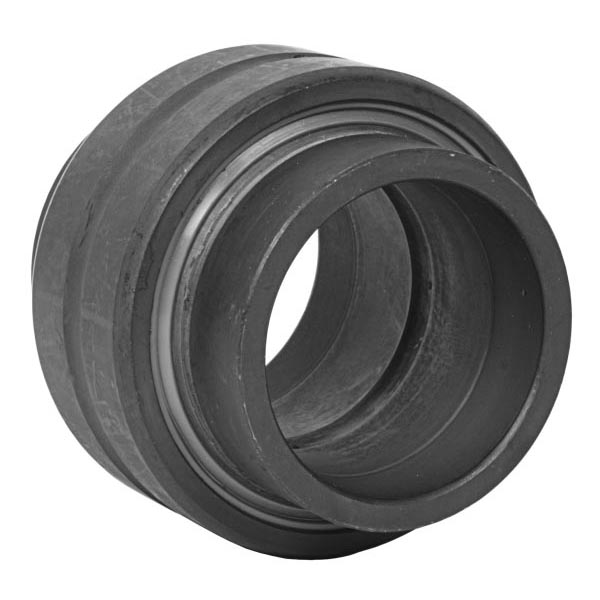

GEWZ19ES-2RS

Inch series radial spherical plain bearings with an extended inner ring, requiring maintenance, steel/steel, sealed

This spherical plain bearing has an extended inner ring for cylinder connection.
This spherical plain bearing has a single fractured outer ring.
The inner ring and outer ring are coated with molybdenum disulfide for reduced sliding friction.
The bearing can be relubricated via lubrication holes and an annular groove in both rings.
This spherical plain bearing has two lip seals.
This spherical plain bearing must be properly lubricated with grease.

Цена :

Минимальное количество для заказа :

Время выполнения :

РАССЛЕДОВАНИЕ

Display : Метрика Дюйм

Properties

Dimensions

d	19.05 mm	Bore diameter
D	31.75 mm	Outside diameter
B	28.575 mm	Width inner ring
C	14.275 mm	Width outer ring
d_k	27.5 mm	Ball diameter
a	9 °	Tilt angle
d₂	23.369 mm	Connection measure Inner ring
r₁	0.3 mm	Chamfer dimension
r₂	0.6 mm	Chamfer dimension

Load Capacity

C_r	31 kN	Basic dynamic load rating, radial
C_0r	95 kN	Basic static load rating, radial

Weight

≈m

0.064 kg

Weight

Mounting dimensions

d_{a min}	21.7 mm	Connection measure inner ring, min.
d_{a max}	23.4 mm	Connection measure inner ring, max.
D_{a min}	27.9 mm	Housing connection diameter, min.
D_{a max}	28.3 mm	Housing Shoulder diameter, max.
r_{a min}	0.3 mm	Fillet radius shaft, min
r_{b max}	0.6 mm	Fillet radius housing, max.

Radial clearance

Min.	0.0762 mm	Radial clearance
Max.	0.1778 mm	Radial clearance

Tolerance

d_UT	-0.0127 mm	Bore diameter,lower tolerance
D_UT	-0.127 mm	Outside diameter,lower tolerance
B_UT	-0.127 mm	Inner ring width,lower tolerance
C_UT	-0.0127 mm	Outer ring width, lower tolerance

Temperature range

T_min	-30 °C	Operating temperature min.
T_max	130 °C	Operating temperature max.

SKF	RBC	AURORA	LS
GEZM012ES-2RS	B12-ELSS	GEWZ012ES-2RS	GEWZ19ES-2RS
