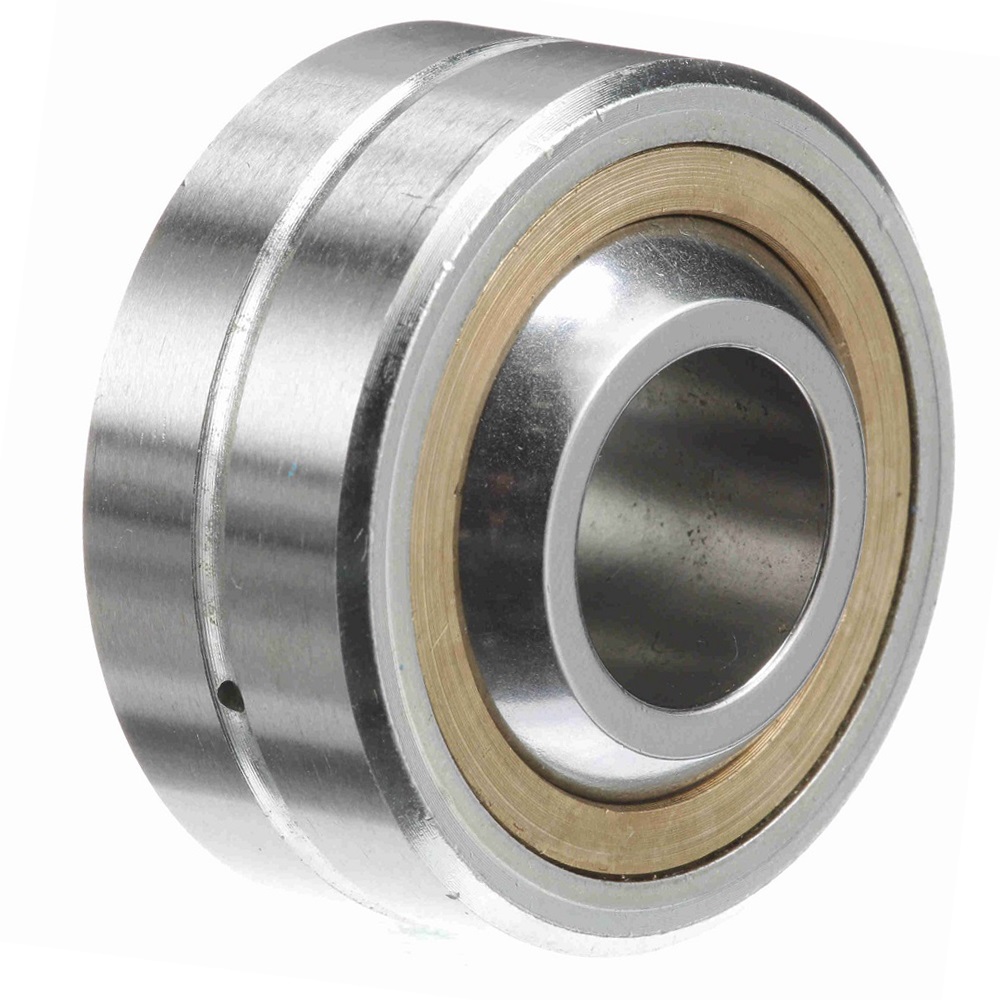

GE..PW series radial spherical plain bearings and bushing assembly
| Requiring maintenance | Maintenance | |
| Hard chromium/PTFE composite | Sliding contact surface | |
| Without | Sealing | |
| Bearing steel | Material, inner ring | |
| Brass | Material, outer ring | |
| Carbon steel | Material, bushing |
| d | 22 mm | Bore diameter |
| D | 50 mm | Outside diameter |
| B | 28 mm | Width inner ring |
| C | 20 mm | Width outer ring |
| dk | 38.1 mm | Ball diameter |
| a | 15 ° | Tilt angle |
| d2 | 25.8 mm | Connection measure Inner ring |
| r1 | 0.3 mm | Chamfer dimension |
| r2 | 0.6 mm | Chamfer dimension |
| Cr | 38 kN | Basic dynamic load rating, radial |
| C0r | 88 kN | Basic static load rating, radial |
| ≈m | 0.26 kg | Weight |
| da max | 25.8 mm | Connection measure inner ring, max. |
| Min. | 0.006 mm | Radial clearance |
| Max. | 0.035 mm | Radial clearance |
| dOT | 0.021 mm | Bore diameter,upper tolerance |
| DUT | -0.016 mm | Outside diameter,lower tolerance |
| BUT | -0.1 mm | Inner ring width,lower tolerance |
| COT | 0.1 mm | Outer ring width,upper tolerance |
| CUT | -0.1 mm | Outer ring width, lower tolerance |
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 130 °C | Operating temperature max. |
