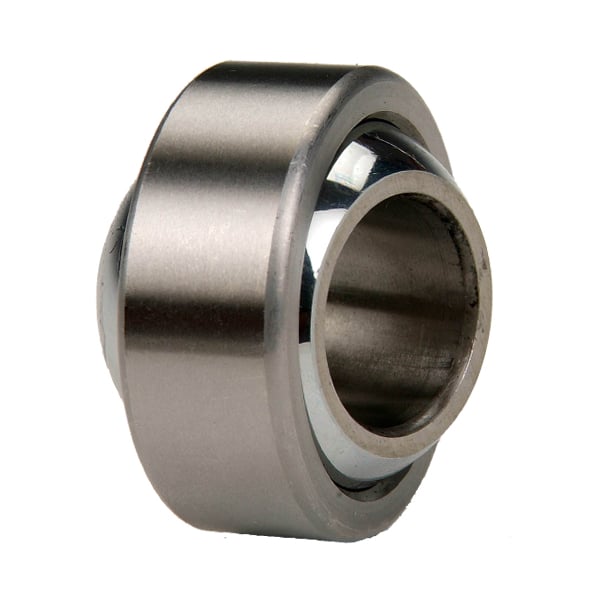

Stainless steel radial spherical plain bearings to ISO 12 240-1, dimension series G, corrosion resistance, maintenance-free, sliding contact surface hard chromium/PTFE composite
| Maintenance-free | Maintenance | |
| Hard chromium/PTFE composite | Sliding contact surface | |
| Without | Sealing | |
| Stainless steel | Material, inner ring | |
| Stainless steel | Material, outer ring |
| d | 20 mm | Bore diameter |
| D | 42 mm | Outside diameter |
| B | 25 mm | Width inner ring |
| C | 16 mm | Width outer ring |
| dk | 35.5 mm | Ball diameter |
| a | 17 ° | Tilt angle |
| d2 | 25.2 mm | Connection measure Inner ring |
| r1 | 0.6 mm | Chamfer dimension |
| r2 | 0.6 mm | Chamfer dimension |
| Cr | 51 kN | Basic dynamic load rating, radial |
| C0r | 127 kN | Basic static load rating, radial |
| ≈m | 0.153 kg | Weight |
| da min | 22.1 mm | Connection measure inner ring, min. |
| da max | 25.2 mm | Connection measure inner ring, max. |
| Da min | 33 mm | Housing connection diameter, min. |
| Da max | 39.5 mm | Housing Shoulder diameter, max. |
| ra min | 0.3 mm | Fillet radius shaft, min |
| rb max | 0.6 mm | Fillet radius housing, max. |
| Max. | 0.05 mm | Radial clearance |
| dUT | -0.010 mm | Bore diameter,lower tolerance |
| DUT | -0.011 mm | Outside diameter,lower tolerance |
| BUT | -0.12 mm | Inner ring width,lower tolerance |
| CUT | -0.24 mm | Outer ring width, lower tolerance |
| Tmin | -50 °C | Operating temperature min. |
| Tmax | 150 °C | Operating temperature max. |
