PWTR

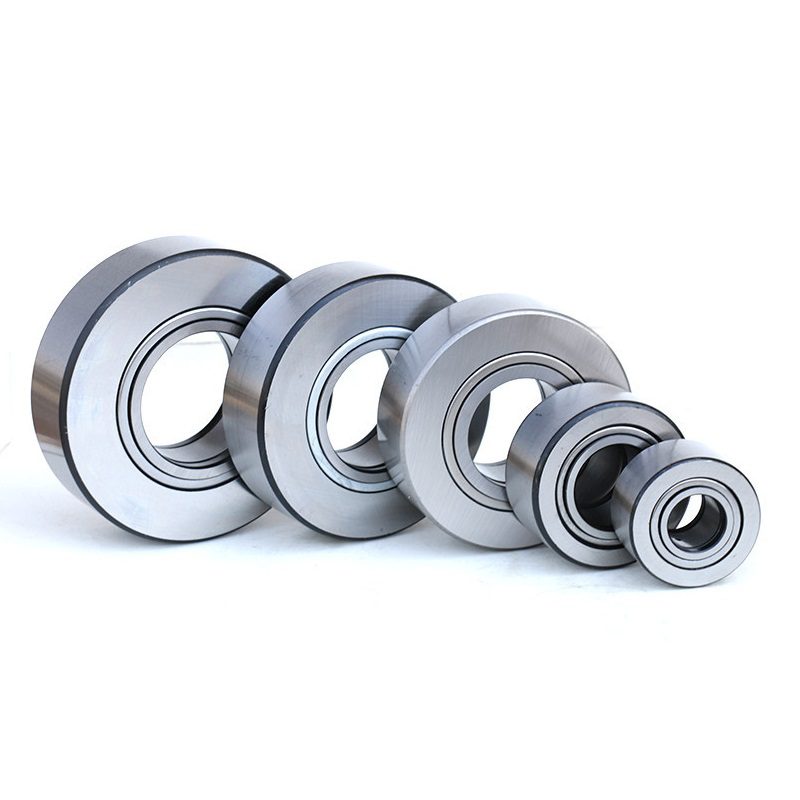

Опорный каток (опорный каток) с осевой направляющей (фланцевые кольца), манжетное уплотнение с обеих сторон
Опорные ролики (ролики опорные яремного типа) предназначены для обкатывания и использования в кулачковых приводах, станинах, конвейерных системах, системах линейных направляющих и т. д. В их основе лежит двухрядный бессепараторный цилиндрический роликоподшипник с внутренним кольцом. и имеют толстостенное наружное кольцо с цилиндрической рабочей поверхностью. Они поставляются запечатанными и готовыми к установке. Внутреннее кольцо имеет смазочное отверстие для облегчения повторной смазки.
• Высокая радиальная грузоподъемность
• Выдерживать относительно большие осевые нагрузки из-за перекоса или опрокидывания
• Долгий срок службы
• Готов к установке
• Герметичный для повышения надежности, с функцией повторного смазывания

ФИЛЬТРЫ ПРОДУКТОВ И ТАБЛИЦА

Outside diameter (mm)

~

Bore diameter (mm)

~

Width inner ring (mm)

~

Width outer ring (mm)

~

Outer ring profile
Crowned
Cylindrical
Designation

Interchange code

СБРОСИТЬ ВСЕ
Отправить
ФИЛЬТРЫ ： Metric Imperial   Сортировать по :
Обозначение Outside diameter Bore diameter Width inner ring Width outer ring Basic dynamic load rating Basic static load rating Maximum dynamic radial load Maximum static radial load Weight
D d B C C C0 Fr F0r ≈m
mm
mm
mm
mm
kN
kN
kN
kN
kg
PWTR15-2RS 35 15 19 18 11.9 11.4 8.65 12.5 0.099
PWTR1542-2RS 42 15 19 18 14.2 15 22 31.5 0.158
PWTR17-2RS 40 17 21 20 13.8 14.3 13.7 19.6 0.147
PWTR1747-2RS 47 17 21 20 15.7 17.6 30 42.5 0.22
PWTR20-2RS 47 20 25 24 22.9 24.5 18.3 26 0.245
PWTR2052-2RS 52 20 25 24 25.5 29 30.5 44 0.321
PWTR25-2RS 52 25 25 24 23.8 26.5 18.6 26.5 0.281
PWTR2562-2RS 62 25 25 24 29.2 36 45 64 0.45
PWTR30-2RS 62 30 29 28 31.9 32.5 20.4 29 0.465
PWTR3072-2RS 72 30 29 28 39.6 45 47.5 68 0.697
PWTR35-2RS 72 35 29 28 35.8 40.5 28 40 0.63
PWTR3580-2RS 80 35 29 28 41.8 50 51 72 0.836
PWTR40-2RS 80 40 32 30 41.8 49 33.5 48 0.816
PWTR4090-2RS 90 40 32 30 49.5 62 64 91.5 1.129
PWTR45-2RS 85 45 32 30 42.9 50 34 48 0.883
PWTR45100-2RS 100 45 32 30 53.9 69.5 81.5 116 1.396
PWTR50-2RS 90 50 32 30 42.9 52 34.5 49 0.95
PWTR50110-2RS 110 50 32 30 57.2 78 100 143 1.69
PWTR15-2RS
D Outside diameter 35 mm
d Bore diameter 15 mm
B Width inner ring 19 mm
C Width outer ring 18 mm
C Basic dynamic load rating 11.9 kN
C0 Basic static load rating 11.4 kN
Fr Maximum dynamic radial load 8.65 kN
F0r Maximum static radial load 12.5 kN
≈m Weight 0.099 kg
PWTR1542-2RS
D Outside diameter 42 mm
d Bore diameter 15 mm
B Width inner ring 19 mm
C Width outer ring 18 mm
C Basic dynamic load rating 14.2 kN
C0 Basic static load rating 15 kN
Fr Maximum dynamic radial load 22 kN
F0r Maximum static radial load 31.5 kN
≈m Weight 0.158 kg
PWTR17-2RS
D Outside diameter 40 mm
d Bore diameter 17 mm
B Width inner ring 21 mm
C Width outer ring 20 mm
C Basic dynamic load rating 13.8 kN
C0 Basic static load rating 14.3 kN
Fr Maximum dynamic radial load 13.7 kN
F0r Maximum static radial load 19.6 kN
≈m Weight 0.147 kg
PWTR1747-2RS
D Outside diameter 47 mm
d Bore diameter 17 mm
B Width inner ring 21 mm
C Width outer ring 20 mm
C Basic dynamic load rating 15.7 kN
C0 Basic static load rating 17.6 kN
Fr Maximum dynamic radial load 30 kN
F0r Maximum static radial load 42.5 kN
≈m Weight 0.22 kg
PWTR20-2RS
D Outside diameter 47 mm
d Bore diameter 20 mm
B Width inner ring 25 mm
C Width outer ring 24 mm
C Basic dynamic load rating 22.9 kN
C0 Basic static load rating 24.5 kN
Fr Maximum dynamic radial load 18.3 kN
F0r Maximum static radial load 26 kN
≈m Weight 0.245 kg
PWTR2052-2RS
D Outside diameter 52 mm
d Bore diameter 20 mm
B Width inner ring 25 mm
C Width outer ring 24 mm
C Basic dynamic load rating 25.5 kN
C0 Basic static load rating 29 kN
Fr Maximum dynamic radial load 30.5 kN
F0r Maximum static radial load 44 kN
≈m Weight 0.321 kg
PWTR25-2RS
D Outside diameter 52 mm
d Bore diameter 25 mm
B Width inner ring 25 mm
C Width outer ring 24 mm
C Basic dynamic load rating 23.8 kN
C0 Basic static load rating 26.5 kN
Fr Maximum dynamic radial load 18.6 kN
F0r Maximum static radial load 26.5 kN
≈m Weight 0.281 kg
PWTR2562-2RS
D Outside diameter 62 mm
d Bore diameter 25 mm
B Width inner ring 25 mm
C Width outer ring 24 mm
C Basic dynamic load rating 29.2 kN
C0 Basic static load rating 36 kN
Fr Maximum dynamic radial load 45 kN
F0r Maximum static radial load 64 kN
≈m Weight 0.45 kg
PWTR30-2RS
D Outside diameter 62 mm
d Bore diameter 30 mm
B Width inner ring 29 mm
C Width outer ring 28 mm
C Basic dynamic load rating 31.9 kN
C0 Basic static load rating 32.5 kN
Fr Maximum dynamic radial load 20.4 kN
F0r Maximum static radial load 29 kN
≈m Weight 0.465 kg
PWTR3072-2RS
D Outside diameter 72 mm
d Bore diameter 30 mm
B Width inner ring 29 mm
C Width outer ring 28 mm
C Basic dynamic load rating 39.6 kN
C0 Basic static load rating 45 kN
Fr Maximum dynamic radial load 47.5 kN
F0r Maximum static radial load 68 kN
≈m Weight 0.697 kg
PWTR35-2RS
D Outside diameter 72 mm
d Bore diameter 35 mm
B Width inner ring 29 mm
C Width outer ring 28 mm
C Basic dynamic load rating 35.8 kN
C0 Basic static load rating 40.5 kN
Fr Maximum dynamic radial load 28 kN
F0r Maximum static radial load 40 kN
≈m Weight 0.63 kg
PWTR3580-2RS
D Outside diameter 80 mm
d Bore diameter 35 mm
B Width inner ring 29 mm
C Width outer ring 28 mm
C Basic dynamic load rating 41.8 kN
C0 Basic static load rating 50 kN
Fr Maximum dynamic radial load 51 kN
F0r Maximum static radial load 72 kN
≈m Weight 0.836 kg
PWTR40-2RS
D Outside diameter 80 mm
d Bore diameter 40 mm
B Width inner ring 32 mm
C Width outer ring 30 mm
C Basic dynamic load rating 41.8 kN
C0 Basic static load rating 49 kN
Fr Maximum dynamic radial load 33.5 kN
F0r Maximum static radial load 48 kN
≈m Weight 0.816 kg
PWTR4090-2RS
D Outside diameter 90 mm
d Bore diameter 40 mm
B Width inner ring 32 mm
C Width outer ring 30 mm
C Basic dynamic load rating 49.5 kN
C0 Basic static load rating 62 kN
Fr Maximum dynamic radial load 64 kN
F0r Maximum static radial load 91.5 kN
≈m Weight 1.129 kg
PWTR45-2RS
D Outside diameter 85 mm
d Bore diameter 45 mm
B Width inner ring 32 mm
C Width outer ring 30 mm
C Basic dynamic load rating 42.9 kN
C0 Basic static load rating 50 kN
Fr Maximum dynamic radial load 34 kN
F0r Maximum static radial load 48 kN
≈m Weight 0.883 kg
PWTR45100-2RS
D Outside diameter 100 mm
d Bore diameter 45 mm
B Width inner ring 32 mm
C Width outer ring 30 mm
C Basic dynamic load rating 53.9 kN
C0 Basic static load rating 69.5 kN
Fr Maximum dynamic radial load 81.5 kN
F0r Maximum static radial load 116 kN
≈m Weight 1.396 kg
PWTR50-2RS
D Outside diameter 90 mm
d Bore diameter 50 mm
B Width inner ring 32 mm
C Width outer ring 30 mm
C Basic dynamic load rating 42.9 kN
C0 Basic static load rating 52 kN
Fr Maximum dynamic radial load 34.5 kN
F0r Maximum static radial load 49 kN
≈m Weight 0.95 kg
PWTR50110-2RS
D Outside diameter 110 mm
d Bore diameter 50 mm
B Width inner ring 32 mm
C Width outer ring 30 mm
C Basic dynamic load rating 57.2 kN
C0 Basic static load rating 78 kN
Fr Maximum dynamic radial load 100 kN
F0r Maximum static radial load 143 kN
≈m Weight 1.69 kg
Outside diameter
D
35 mm
Bore diameter
d
15 mm
Width inner ring
B
19 mm
Width outer ring
C
18 mm
Basic dynamic load rating
C
11.9 kN
Basic static load rating
C0
11.4 kN
Maximum dynamic radial load
Fr
8.65 kN
Maximum static radial load
F0r
12.5 kN
Weight
≈m
0.099 kg
Outside diameter
D
42 mm
Bore diameter
d
15 mm
Width inner ring
B
19 mm
Width outer ring
C
18 mm
Basic dynamic load rating
C
14.2 kN
Basic static load rating
C0
15 kN
Maximum dynamic radial load
Fr
22 kN
Maximum static radial load
F0r
31.5 kN
Weight
≈m
0.158 kg
Outside diameter
D
40 mm
Bore diameter
d
17 mm
Width inner ring
B
21 mm
Width outer ring
C
20 mm
Basic dynamic load rating
C
13.8 kN
Basic static load rating
C0
14.3 kN
Maximum dynamic radial load
Fr
13.7 kN
Maximum static radial load
F0r
19.6 kN
Weight
≈m
0.147 kg
Outside diameter
D
47 mm
Bore diameter
d
17 mm
Width inner ring
B
21 mm
Width outer ring
C
20 mm
Basic dynamic load rating
C
15.7 kN
Basic static load rating
C0
17.6 kN
Maximum dynamic radial load
Fr
30 kN
Maximum static radial load
F0r
42.5 kN
Weight
≈m
0.22 kg
Outside diameter
D
47 mm
Bore diameter
d
20 mm
Width inner ring
B
25 mm
Width outer ring
C
24 mm
Basic dynamic load rating
C
22.9 kN
Basic static load rating
C0
24.5 kN
Maximum dynamic radial load
Fr
18.3 kN
Maximum static radial load
F0r
26 kN
Weight
≈m
0.245 kg
Outside diameter
D
52 mm
Bore diameter
d
20 mm
Width inner ring
B
25 mm
Width outer ring
C
24 mm
Basic dynamic load rating
C
25.5 kN
Basic static load rating
C0
29 kN
Maximum dynamic radial load
Fr
30.5 kN
Maximum static radial load
F0r
44 kN
Weight
≈m
0.321 kg
Outside diameter
D
52 mm
Bore diameter
d
25 mm
Width inner ring
B
25 mm
Width outer ring
C
24 mm
Basic dynamic load rating
C
23.8 kN
Basic static load rating
C0
26.5 kN
Maximum dynamic radial load
Fr
18.6 kN
Maximum static radial load
F0r
26.5 kN
Weight
≈m
0.281 kg
Outside diameter
D
62 mm
Bore diameter
d
25 mm
Width inner ring
B
25 mm
Width outer ring
C
24 mm
Basic dynamic load rating
C
29.2 kN
Basic static load rating
C0
36 kN
Maximum dynamic radial load
Fr
45 kN
Maximum static radial load
F0r
64 kN
Weight
≈m
0.45 kg
Outside diameter
D
62 mm
Bore diameter
d
30 mm
Width inner ring
B
29 mm
Width outer ring
C
28 mm
Basic dynamic load rating
C
31.9 kN
Basic static load rating
C0
32.5 kN
Maximum dynamic radial load
Fr
20.4 kN
Maximum static radial load
F0r
29 kN
Weight
≈m
0.465 kg
Outside diameter
D
72 mm
Bore diameter
d
30 mm
Width inner ring
B
29 mm
Width outer ring
C
28 mm
Basic dynamic load rating
C
39.6 kN
Basic static load rating
C0
45 kN
Maximum dynamic radial load
Fr
47.5 kN
Maximum static radial load
F0r
68 kN
Weight
≈m
0.697 kg
Outside diameter
D
72 mm
Bore diameter
d
35 mm
Width inner ring
B
29 mm
Width outer ring
C
28 mm
Basic dynamic load rating
C
35.8 kN
Basic static load rating
C0
40.5 kN
Maximum dynamic radial load
Fr
28 kN
Maximum static radial load
F0r
40 kN
Weight
≈m
0.63 kg
Outside diameter
D
80 mm
Bore diameter
d
35 mm
Width inner ring
B
29 mm
Width outer ring
C
28 mm
Basic dynamic load rating
C
41.8 kN
Basic static load rating
C0
50 kN
Maximum dynamic radial load
Fr
51 kN
Maximum static radial load
F0r
72 kN
Weight
≈m
0.836 kg
Outside diameter
D
80 mm
Bore diameter
d
40 mm
Width inner ring
B
32 mm
Width outer ring
C
30 mm
Basic dynamic load rating
C
41.8 kN
Basic static load rating
C0
49 kN
Maximum dynamic radial load
Fr
33.5 kN
Maximum static radial load
F0r
48 kN
Weight
≈m
0.816 kg
Outside diameter
D
90 mm
Bore diameter
d
40 mm
Width inner ring
B
32 mm
Width outer ring
C
30 mm
Basic dynamic load rating
C
49.5 kN
Basic static load rating
C0
62 kN
Maximum dynamic radial load
Fr
64 kN
Maximum static radial load
F0r
91.5 kN
Weight
≈m
1.129 kg
Outside diameter
D
85 mm
Bore diameter
d
45 mm
Width inner ring
B
32 mm
Width outer ring
C
30 mm
Basic dynamic load rating
C
42.9 kN
Basic static load rating
C0
50 kN
Maximum dynamic radial load
Fr
34 kN
Maximum static radial load
F0r
48 kN
Weight
≈m
0.883 kg
Outside diameter
D
100 mm
Bore diameter
d
45 mm
Width inner ring
B
32 mm
Width outer ring
C
30 mm
Basic dynamic load rating
C
53.9 kN
Basic static load rating
C0
69.5 kN
Maximum dynamic radial load
Fr
81.5 kN
Maximum static radial load
F0r
116 kN
Weight
≈m
1.396 kg
Outside diameter
D
90 mm
Bore diameter
d
50 mm
Width inner ring
B
32 mm
Width outer ring
C
30 mm
Basic dynamic load rating
C
42.9 kN
Basic static load rating
C0
52 kN
Maximum dynamic radial load
Fr
34.5 kN
Maximum static radial load
F0r
49 kN
Weight
≈m
0.95 kg
Outside diameter
D
110 mm
Bore diameter
d
50 mm
Width inner ring
B
32 mm
Width outer ring
C
30 mm
Basic dynamic load rating
C
57.2 kN
Basic static load rating
C0
78 kN
Maximum dynamic radial load
Fr
100 kN
Maximum static radial load
F0r
143 kN
Weight
≈m
1.69 kg
Допуск и зазор

Допуски и зазоры подшипников

Скачать
111

СЕРТИФИКАТ ИСО
О нас
СВЯЗАТЬСЯ С НАМИ
СОЦИАЛЬНЫЕ СЕТИ
МОБИЛЬНЫЕ ПРИЛОЖЕНИЯ
© Copyright 2022 C&H Bearing, Все права защищены Условия эксплуатации политика конфиденциальности КАРТА САЙТА
C&H BEARING WEBSITE
