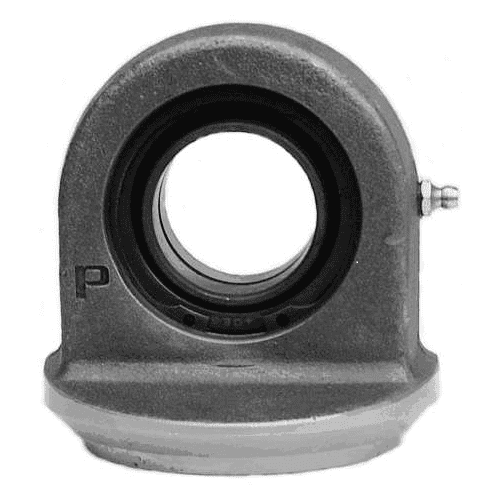

TN..SF..

TN..SF.. series hydraulic rod ends, with cylindrical section welding shank, steel/steel, requiring maintenance

  • spherical plain bearing located in the housing by retaining rings, can be dismantled
  • heavy-duty rod end to be welded to the reed of the hydraulic cylinders
  • available with maintenance-free spherical plain bearings
  • E, F, X , Y , Z , F , R dimensions must be advised when the order is placed

Material for general purpose

  • Housing: construction steel S 355 J2G3 (St 52-3 N) (1.0570)
  • Bearing: GCr15(52100,100Cr6) bearing steel, phosphate treated

Permissible operating temperature range

  • －50℃～＋150℃/－30℃～＋130℃(PTFE lined)

ФИЛЬТРЫ ПРОДУКТОВ И ТАБЛИЦА

Bore diameter (mm)

~

Head diameter (mm)

~

Ball width (mm)

~

Maintenance
Requiring maintenance
Maintenance-free
Housing material
Heat treatable steel C45(1.0503)
Construction steel S 355 J2G3 (St 52-3 N) (1.0570)
Ductile cast iron EN-GJS-400-15
Stainless steel AISI 316
Bearing material
GCr15 (52100/100Cr6) bearing steel
AISI420 stainless steel
Thread direction
Right-hand
Left-hand
Designation

Interchange code

СБРОСИТЬ ВСЕ
Отправить
ФИЛЬТРЫ ： Metric Imperial   Сортировать по :
Обозначение Bore diameter Head diameter Ball width Thread size Head width Tilt angle Basic dynamic load rating Basic static load rating
d d2 B G C1 α° C C0
mm
mm
mm
mm
°
kN
kN
TS 50 NF 120 50 123 35 40 6 156 440
TS 40 NF 85 40 100 28 35 7 100 300
TS 40 NF 90 40 100 28 35 7 100 300
TS 40 NF 100 40 100 28 35 7 100 300
TS 50 NF 110 50 123 35 40 6 156 440
TS 30 NF 63 30 65 22 28 6 62 118
TS 30 NF 65 30 65 22 28 6 62 118
TS 35 NF 70 35 83 25 30 6 80 196
TS 35 NF 75 35 83 25 30 6 80 196
TS 35 NF 80 35 83 25 30 6 80 196
TS 35 NF 80-1 35 83 25 30 6 80 196
TS 40 NF 80 40 100 28 35 7 100 300
TS 20 NF 40 20 50 16 19 9 30 67
TS 20 NF 45 20 50 16 19 9 30 67
TS 25 NF 50 25 55 20 23 7 48 69.5
TS 25 NF 55 25 55 20 23 7 48 69.5
TS 30 NF 60 30 65 22 28 6 62 118
TS 50 NF 125 50 123 35 40 6 156 440
TS 20 NF 35 20 50 16 19 9 30 67
TS 50 NF 120
d Bore diameter 50 mm
d2 Head diameter 123 mm
B Ball width 35 mm
G Thread size
C1 Head width 40 mm
α° Tilt angle 6 °
C Basic dynamic load rating 156 kN
C0 Basic static load rating 440 kN
TS 40 NF 85
d Bore diameter 40 mm
d2 Head diameter 100 mm
B Ball width 28 mm
G Thread size
C1 Head width 35 mm
α° Tilt angle 7 °
C Basic dynamic load rating 100 kN
C0 Basic static load rating 300 kN
TS 40 NF 90
d Bore diameter 40 mm
d2 Head diameter 100 mm
B Ball width 28 mm
G Thread size
C1 Head width 35 mm
α° Tilt angle 7 °
C Basic dynamic load rating 100 kN
C0 Basic static load rating 300 kN
TS 40 NF 100
d Bore diameter 40 mm
d2 Head diameter 100 mm
B Ball width 28 mm
G Thread size
C1 Head width 35 mm
α° Tilt angle 7 °
C Basic dynamic load rating 100 kN
C0 Basic static load rating 300 kN
TS 50 NF 110
d Bore diameter 50 mm
d2 Head diameter 123 mm
B Ball width 35 mm
G Thread size
C1 Head width 40 mm
α° Tilt angle 6 °
C Basic dynamic load rating 156 kN
C0 Basic static load rating 440 kN
TS 30 NF 63
d Bore diameter 30 mm
d2 Head diameter 65 mm
B Ball width 22 mm
G Thread size
C1 Head width 28 mm
α° Tilt angle 6 °
C Basic dynamic load rating 62 kN
C0 Basic static load rating 118 kN
TS 30 NF 65
d Bore diameter 30 mm
d2 Head diameter 65 mm
B Ball width 22 mm
G Thread size
C1 Head width 28 mm
α° Tilt angle 6 °
C Basic dynamic load rating 62 kN
C0 Basic static load rating 118 kN
TS 35 NF 70
d Bore diameter 35 mm
d2 Head diameter 83 mm
B Ball width 25 mm
G Thread size
C1 Head width 30 mm
α° Tilt angle 6 °
C Basic dynamic load rating 80 kN
C0 Basic static load rating 196 kN
TS 35 NF 75
d Bore diameter 35 mm
d2 Head diameter 83 mm
B Ball width 25 mm
G Thread size
C1 Head width 30 mm
α° Tilt angle 6 °
C Basic dynamic load rating 80 kN
C0 Basic static load rating 196 kN
TS 35 NF 80
d Bore diameter 35 mm
d2 Head diameter 83 mm
B Ball width 25 mm
G Thread size
C1 Head width 30 mm
α° Tilt angle 6 °
C Basic dynamic load rating 80 kN
C0 Basic static load rating 196 kN
TS 35 NF 80-1
d Bore diameter 35 mm
d2 Head diameter 83 mm
B Ball width 25 mm
G Thread size
C1 Head width 30 mm
α° Tilt angle 6 °
C Basic dynamic load rating 80 kN
C0 Basic static load rating 196 kN
TS 40 NF 80
d Bore diameter 40 mm
d2 Head diameter 100 mm
B Ball width 28 mm
G Thread size
C1 Head width 35 mm
α° Tilt angle 7 °
C Basic dynamic load rating 100 kN
C0 Basic static load rating 300 kN
TS 20 NF 40
d Bore diameter 20 mm
d2 Head diameter 50 mm
B Ball width 16 mm
G Thread size
C1 Head width 19 mm
α° Tilt angle 9 °
C Basic dynamic load rating 30 kN
C0 Basic static load rating 67 kN
TS 20 NF 45
d Bore diameter 20 mm
d2 Head diameter 50 mm
B Ball width 16 mm
G Thread size
C1 Head width 19 mm
α° Tilt angle 9 °
C Basic dynamic load rating 30 kN
C0 Basic static load rating 67 kN
TS 25 NF 50
d Bore diameter 25 mm
d2 Head diameter 55 mm
B Ball width 20 mm
G Thread size
C1 Head width 23 mm
α° Tilt angle 7 °
C Basic dynamic load rating 48 kN
C0 Basic static load rating 69.5 kN
TS 25 NF 55
d Bore diameter 25 mm
d2 Head diameter 55 mm
B Ball width 20 mm
G Thread size
C1 Head width 23 mm
α° Tilt angle 7 °
C Basic dynamic load rating 48 kN
C0 Basic static load rating 69.5 kN
TS 30 NF 60
d Bore diameter 30 mm
d2 Head diameter 65 mm
B Ball width 22 mm
G Thread size
C1 Head width 28 mm
α° Tilt angle 6 °
C Basic dynamic load rating 62 kN
C0 Basic static load rating 118 kN
TS 50 NF 125
d Bore diameter 50 mm
d2 Head diameter 123 mm
B Ball width 35 mm
G Thread size
C1 Head width 40 mm
α° Tilt angle 6 °
C Basic dynamic load rating 156 kN
C0 Basic static load rating 440 kN
TS 20 NF 35
d Bore diameter 20 mm
d2 Head diameter 50 mm
B Ball width 16 mm
G Thread size
C1 Head width 19 mm
α° Tilt angle 9 °
C Basic dynamic load rating 30 kN
C0 Basic static load rating 67 kN
Bore diameter
d
50 mm
Head diameter
d2
123 mm
Ball width
B
35 mm
Thread size
G
Head width
C1
40 mm
Tilt angle
α°
6 °
Basic dynamic load rating
C
156 kN
Basic static load rating
C0
440 kN
Bore diameter
d
40 mm
Head diameter
d2
100 mm
Ball width
B
28 mm
Thread size
G
Head width
C1
35 mm
Tilt angle
α°
7 °
Basic dynamic load rating
C
100 kN
Basic static load rating
C0
300 kN
Bore diameter
d
40 mm
Head diameter
d2
100 mm
Ball width
B
28 mm
Thread size
G
Head width
C1
35 mm
Tilt angle
α°
7 °
Basic dynamic load rating
C
100 kN
Basic static load rating
C0
300 kN
Bore diameter
d
40 mm
Head diameter
d2
100 mm
Ball width
B
28 mm
Thread size
G
Head width
C1
35 mm
Tilt angle
α°
7 °
Basic dynamic load rating
C
100 kN
Basic static load rating
C0
300 kN
Bore diameter
d
50 mm
Head diameter
d2
123 mm
Ball width
B
35 mm
Thread size
G
Head width
C1
40 mm
Tilt angle
α°
6 °
Basic dynamic load rating
C
156 kN
Basic static load rating
C0
440 kN
Bore diameter
d
30 mm
Head diameter
d2
65 mm
Ball width
B
22 mm
Thread size
G
Head width
C1
28 mm
Tilt angle
α°
6 °
Basic dynamic load rating
C
62 kN
Basic static load rating
C0
118 kN
Bore diameter
d
30 mm
Head diameter
d2
65 mm
Ball width
B
22 mm
Thread size
G
Head width
C1
28 mm
Tilt angle
α°
6 °
Basic dynamic load rating
C
62 kN
Basic static load rating
C0
118 kN
Bore diameter
d
35 mm
Head diameter
d2
83 mm
Ball width
B
25 mm
Thread size
G
Head width
C1
30 mm
Tilt angle
α°
6 °
Basic dynamic load rating
C
80 kN
Basic static load rating
C0
196 kN
Bore diameter
d
35 mm
Head diameter
d2
83 mm
Ball width
B
25 mm
Thread size
G
Head width
C1
30 mm
Tilt angle
α°
6 °
Basic dynamic load rating
C
80 kN
Basic static load rating
C0
196 kN
Bore diameter
d
35 mm
Head diameter
d2
83 mm
Ball width
B
25 mm
Thread size
G
Head width
C1
30 mm
Tilt angle
α°
6 °
Basic dynamic load rating
C
80 kN
Basic static load rating
C0
196 kN
Bore diameter
d
35 mm
Head diameter
d2
83 mm
Ball width
B
25 mm
Thread size
G
Head width
C1
30 mm
Tilt angle
α°
6 °
Basic dynamic load rating
C
80 kN
Basic static load rating
C0
196 kN
Bore diameter
d
40 mm
Head diameter
d2
100 mm
Ball width
B
28 mm
Thread size
G
Head width
C1
35 mm
Tilt angle
α°
7 °
Basic dynamic load rating
C
100 kN
Basic static load rating
C0
300 kN
Bore diameter
d
20 mm
Head diameter
d2
50 mm
Ball width
B
16 mm
Thread size
G
Head width
C1
19 mm
Tilt angle
α°
9 °
Basic dynamic load rating
C
30 kN
Basic static load rating
C0
67 kN
Bore diameter
d
20 mm
Head diameter
d2
50 mm
Ball width
B
16 mm
Thread size
G
Head width
C1
19 mm
Tilt angle
α°
9 °
Basic dynamic load rating
C
30 kN
Basic static load rating
C0
67 kN
Bore diameter
d
25 mm
Head diameter
d2
55 mm
Ball width
B
20 mm
Thread size
G
Head width
C1
23 mm
Tilt angle
α°
7 °
Basic dynamic load rating
C
48 kN
Basic static load rating
C0
69.5 kN
Bore diameter
d
25 mm
Head diameter
d2
55 mm
Ball width
B
20 mm
Thread size
G
Head width
C1
23 mm
Tilt angle
α°
7 °
Basic dynamic load rating
C
48 kN
Basic static load rating
C0
69.5 kN
Bore diameter
d
30 mm
Head diameter
d2
65 mm
Ball width
B
22 mm
Thread size
G
Head width
C1
28 mm
Tilt angle
α°
6 °
Basic dynamic load rating
C
62 kN
Basic static load rating
C0
118 kN
Bore diameter
d
50 mm
Head diameter
d2
123 mm
Ball width
B
35 mm
Thread size
G
Head width
C1
40 mm
Tilt angle
α°
6 °
Basic dynamic load rating
C
156 kN
Basic static load rating
C0
440 kN
Bore diameter
d
20 mm
Head diameter
d2
50 mm
Ball width
B
16 mm
Thread size
G
Head width
C1
19 mm
Tilt angle
α°
9 °
Basic dynamic load rating
C
30 kN
Basic static load rating
C0
67 kN
111

СЕРТИФИКАТ ИСО
О нас
СВЯЗАТЬСЯ С НАМИ
СОЦИАЛЬНЫЕ СЕТИ
МОБИЛЬНЫЕ ПРИЛОЖЕНИЯ
© Copyright 2022 C&H Bearing, Все права защищены Условия эксплуатации политика конфиденциальности КАРТА САЙТА
C&H BEARING WEBSITE
